sswf::TagEditText Class Reference

Defines a dynamic edit text box. More...

#include <libsswf.h>

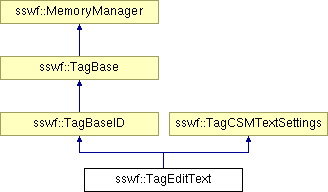

Inheritance diagram for sswf::TagEditText:


Public Types
	EDIT_TEXT_ALIGNMENT_CENTER = 2
	Defines the centered alignment.
	EDIT_TEXT_ALIGNMENT_JUSTIFY = 3
	Defines the justified alignment.
	EDIT_TEXT_ALIGNMENT_LEFT = 0
	Defines the left alignment.
	EDIT_TEXT_ALIGNMENT_RIGHT = 1
	Defines the right alignment.
enum	edit_text_alignment_t { EDIT_TEXT_ALIGNMENT_LEFT = 0, EDIT_TEXT_ALIGNMENT_RIGHT = 1, EDIT_TEXT_ALIGNMENT_CENTER = 2, EDIT_TEXT_ALIGNMENT_JUSTIFY = 3 }
	Defines the different possible alignment. More...
Public Member Functions
void	AddUsedString (const char *string)
	Add a string that will be used with that edit text box.
virtual ErrorManager::error_code_t	Save (Data &data)
	Save an edit text box in a Data buffer.
void	SetAlign (edit_text_alignment_t align)
	Set the alignment for the text.
void	SetAutoSize (bool status=true)
	Automatically resizing the edit text box.
void	SetBorder (bool status=true)
	Mark whether a border should be rendered.
void	SetBounds (const SRectangle &bounds)
	Set the bounds of the edit text.
void	SetColor (Color &color)
	The color used to render the font.
void	SetFont (const TagFont *font, long height)
	Set the font to use to render the glyphs.
void	SetHTML (bool status=true)
	Defines the box as using HTML or plain text.
void	SetIndent (long indent)
	Set the identation of the first line of text.
void	SetLeading (long leading)
	Set the identation of the first line of text.
void	SetMargins (long left, long right)
	Defines the side margin.
void	SetMaxLength (long length)
	Set the maximum length of the text in number of characters.
void	SetMultiline (bool status=true)
	Set the multiline flag to the specified status.
void	SetNoSelect (bool status=true)
	Set whether the user can select the text.
void	SetOutline (bool status=true)
	Set whether an outline should be rendered.
void	SetPassword (bool status=true)
	Set the password flag.
void	SetReadOnly (bool status=true)
	Mark the edit text box as read-only.
void	SetText (const char *text)
	Set the text to be rendered on screen.
void	SetUsedGlyphs (const char *lists)
	Mark a set of glyphs as in use.
void	SetVariableName (const char *name)
	Set the name of the variable.
void	SetWordWrap (bool status=true)
	Set whether words should wrap.
	TagEditText (TagBase *parent)
	Initializes the object.
virtual swf_type_t	TypeFlags (void) const
	Returns the type of an edit text box.
Private Member Functions
virtual ErrorManager::error_code_t	PreSave (void)
	Check that the edit text box can be saved and in which version.
Private Attributes
edit_text_alignment_t	f_align
bool	f_autosize
bool	f_border
SRectangle	f_bounds
Color	f_color
const TagFont *	f_font
unsigned short	f_font_height
bool	f_has_color
bool	f_html
long	f_indent
long	f_leading
long	f_left_margin
long	f_max_length
bool	f_multiline
bool	f_no_select
bool	f_outline
bool	f_password
bool	f_readonly
long	f_right_margin
char *	f_text
sswf_ucs4_t *	f_used_glyphs
sswf_ucs4_t *	f_used_strings
char *	f_var_name
bool	f_word_wrap

Detailed Description

This tag is used to create a text box. People can write text in that box unless it is marked as read-only. Using an action scripts it is also possible to modify the text defined in an edit text box.

One important feature is the use of embedded fonts. In that case, you probably want to mark the edit text with a set of glyphs which need to be included (or "*" for all the glyphs of the font.)

See also:

sswf::TagFont

sswf::TagText

SWF Alexis' Reference—DefineEditText

SWF Alexis' Reference—swf_tag

Member Enumeration Documentation

enum sswf::TagEditText::edit_text_alignment_t

This enumaration defines the list of possible alignment in an edit text box.

Enumerator:

EDIT_TEXT_ALIGNMENT_LEFT	Defines the left alignment. This value is used to have the text rendered on the left edge. This is the default value.
EDIT_TEXT_ALIGNMENT_RIGHT	Defines the right alignment. This value is used to have the text rendered on the right edge.
EDIT_TEXT_ALIGNMENT_CENTER	Defines the centered alignment. This value is used to have the text horizontally rendered in the center of the edit text box.
EDIT_TEXT_ALIGNMENT_JUSTIFY	Defines the justified alignment. This value is supposed to have to text aligned on the left and right edges adding some space where spaces are rendered so it looks like it fits exactly. This may work in the current version, but it has not been working in older versions (v4, v5).

Constructor & Destructor Documentation

TagEditText::TagEditText ( TagBase * parent )

The constructor ensures that all the variables are set to their default.

Parameters:

[in] parent The parent must be a TagHeader

Member Function Documentation

void TagEditText::AddUsedString ( const char * string )

This function is used to tell the edit text box that it will need to be able to display the specified string.

This can be used to obtimize the number of glyphs included in your movie. If your edit text box cannot be edited by an end user, then it is sufficient to only save the glyphs that will at some point be used and forget about the others (especially to save some space in your file.)

For instance, if you have a set of action scripts testing different values and setting the edit text to pre-defined strings such as "Running", "Stopped", "Waiting" and "Paused" then you do not need to save the 'z' letter for instance.

Calling this function multiple times cumulates the strings.

Parameters:

[in] string A string to add to the list of strings in use

ErrorManager::error_code_t TagEditText::PreSave ( void ) [private, virtual]

The function checks whether a font was defined for the edit text. If so, it marks all the glyphs in use according to those specified via the TagEditText::SetUsedGlyphs() and TagEditText::AddUsedString() function calls.

Errors are generated if a required glyph does not exist in the corresponding font.

See also:

sswf::TagEditText::Save(Data& data)

sswf::TagEditText::SetUsedGlyphs(const char *used_glyphs)

sswf::TagEditText::AddUsedString(const char *string)

Reimplemented from sswf::TagBase.

ErrorManager::error_code_t TagEditText::Save ( Data & data ) [virtual]

This function saves an edit text box in the specified Data buffer.

Parameters:

[in] data The Data buffer where the edit text box is saved

Returns:: An error or ErrorManager::ERROR_CODE_NONE

Implements sswf::TagBase.

void TagEditText::SetAlign ( edit_text_alignment_t align )

This function sets the alignment for the text drawn in the edit text box.

The alignment can be set to one of these:

Parameters:

[in] align The alignment to use

void TagEditText::SetAutoSize ( bool status = true )

This function defines whether the box should be automatically resized or the size is defined statically.

Parameters:

[in] status If true, the box will resize itself around the defined text

void TagEditText::SetBorder ( bool status = true )

This function requests that a border be drawn around the edit text box.

Note that the border color is usually black, and the background is always white.

Bug:: If your text is white, it will not show up.

Parameters:

[in] status If true, draw a background and edge

void TagEditText::SetBounds ( const SRectangle & bounds )

This function takes a rectangle representing the bounds of the edit text in the output.

Parameters:

[in] bounds The bounds of the edit text box.

void TagEditText::SetColor ( Color & color )

This function is used to set the color to use to render the font.

Note that you can later use the font as a mask over pretty much any other drawings giving an effect that looks like colorful fonts.

Parameters:

[in] color The color to use to draw the font

void TagEditText::SetFont	(	const TagFont *	font,
		long	height
	)

This function defines the font to use with the edit text box and the height we want the font to be rendered at.

Bug:: Note that if the font is a system font then the height has to be in system font metrics (such as 14 for a 14 points font.) When the font is an embedded font, then the height is taken in Twips.

Parameters:

`[in]`	font	The font tag used to render this edit text box.
`[in]`	height	The height to use to draw the characters.

void TagEditText::SetHTML ( bool status = true )

The text in the edit text box can be set to Plain Text (the default) or HTML.

When set to HTML, a few tags are understood:

<a>...</a>
...
...
...
<li>...</li>
...
<tab>
<textformat>...</textformat>
...

For more information about the supported HTML, please, see SWF Alexis' Reference.

Parameters:

[in] status If set to true, the text in the box is expected to be HTML.

See also:: SWF Alexis' Reference—DefineEditText

void TagEditText::SetIndent ( long indent )

This alue represents the identation of the first line of text in a paragraph.

Parameters:

[in] indent The identation of the text

void TagEditText::SetLeading ( long leading )

This alue represents the number of pixels (in TWIPS) to skip vertically between lines of text.

Parameters:

[in] leading The space between lines.

void TagEditText::SetMargins	(	long	left,
		long	right
	)

This function defines the left and right margin for the text to be rendered in the box.

The margins are useful if you request a border and/or edge to be rendered.

Parameters:

`[in]`	left	The width of the margin on the left side
`[in]`	right	The width of the margin on the right side

void TagEditText::SetMaxLength ( long length )

If the text is editable, to avoid letting people type as much as they want, use this function and set the limit you want. It is wise to always do so.

Note:: This is supposed to be counted in characters. Encodings like UTF-8 or some asian languages may not be able to handling this properly/

Parameters:

[in] length The maximum length a user can type

void TagEditText::SetMultiline ( bool status = true )

This function changes the behavior of the edit text box whenever strings longer than what can be rendered are used in an edit text.

void TagEditText::SetNoSelect ( bool status = true )

This function is used to mark the text in the edit text box as selectable or not. In general, an edit text box used for a label should be marked unselectable and read-only.

Parameters:

[in] status The new status for the no-select flag.

void TagEditText::SetOutline ( bool status = true )

This flag defines whether an embedded font should be used.

Parameters:

[in] status Set to true to use a system default font

void TagEditText::SetPassword ( bool status = true )

By default, an edit text box is expected to be used for other purposes than passwords. But it can be useful, once in a while, to let people login. For that purpose, you can use this function.

The result of setting this flag to true is that the edit text box only renders asterisks,

Parameters:

[in] status If true, the edit text box only displays asterisks.

void TagEditText::SetReadOnly ( bool status = true )

This function marks the edit text box as read-only. This means it can be used to display a string and the user has to right to change its content.

Parameters:

[in] status The new status for the read-only flag.

void TagEditText::SetText ( const char * text )

This function sets the text that will be rendered on the screen.

The glyphs of the default text are automatically marked as required for this animation.

See also:: sswf::TagEditText::AddUsedString(const char *string)

void TagEditText::SetUsedGlyphs ( const char * used_glyphs )

This function can be used to mark a set of glyphs as in use.

The special string "*" or a NULL pointer will request the function to mark all the glyphs as being in use.

The special character - (dash/minus) is used to define a range unless it is found at the very beginning or the very end of the string. For instance, to include all the upper case latin 1 letters, one can use "A-Z".

The use of this function is not cumulative. Calling it again overwrites the previous glyphs in use.

Bug:: This glyphs marked in used must be marked as such after the PreSave() function of the corresponding TagFont is called. For this reason, we must saved this information here.

See also:: sswf::TagEditText::AddUsedString(const char *string)

void TagEditText::SetVariableName ( const char * name )

This function is used to mark this edit text box with a name. This name can later be used in action scripts to read and set the text of the edit text box.

Parameters:

[in] name The name of the variable

void TagEditText::SetWordWrap ( bool status = true )

This function is used to change the word wrap status.

By default an edit text box is set to have its text wrap.

Parameters:

[in] status Set to true to get words to wrap, false otherwise

TagBase::swf_type_t TagEditText::TypeFlags ( void ) const [virtual]

This function returns the type of an edit text box.

An edit text box is a definition and a reference.
